HD-315
THE FULL RANGE
MIG SPECIALIST!

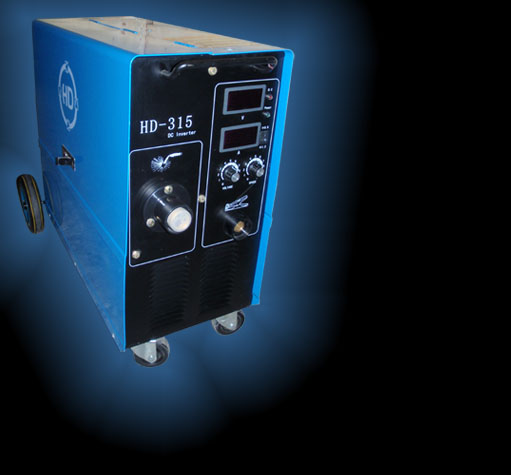

The HD-315 • ARC MMA Welder
• Input voltage: 1-240V/220V
• Frequency: 50/60 hz
• Dimensions: 570x300x530mm
• Weight: 36.0kg
PRICE:
$999.99
HIGH RANGE MIG
ARC MMA
Input Current: 58.0A
Rated Input Voltage:
1-240V/220V
Rated Input POWER: 12.5KVA
Current Regulation Range: 50-315A
Voltage Regulation Range: 16.5-30V
Input Cable Size: 6mm
Wire Feed Speed: 3-15 m/min
Rated Duty Cycle: 60%
No-Load Voltage: 45V
Wire Diameter: 0.8/1.0/1.2mm
Cooling System: Fan Cooling
r

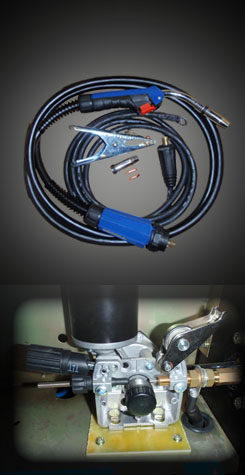

Accessories include the following
e
